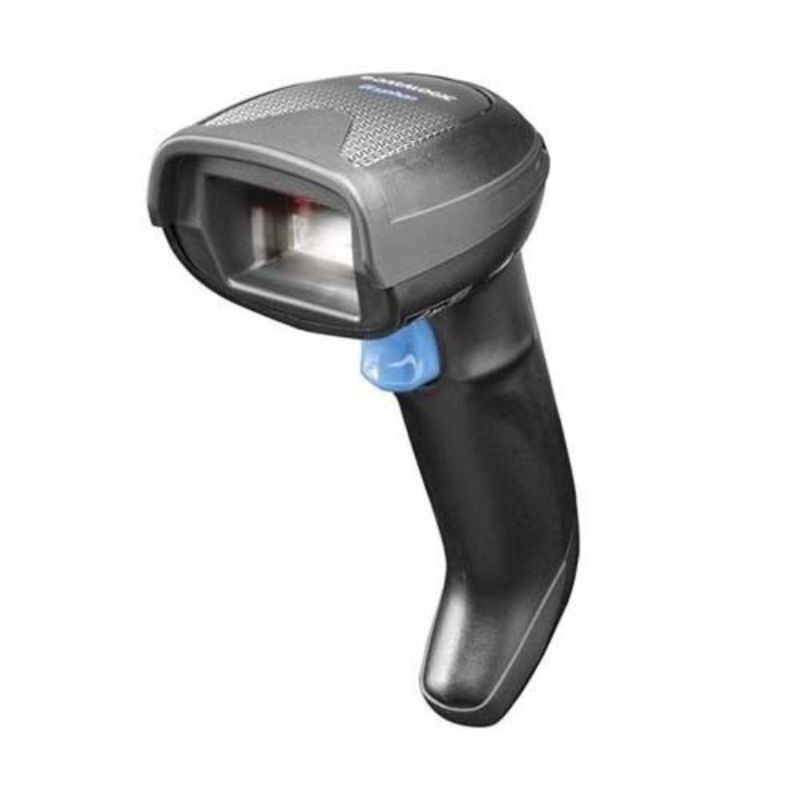

Datalogic Gryphon GBT4500 Bluetooth 1D/2D Scanner
Internal ref: DATAGBT4500 // Manufacturer part #: GBT4500-BK-BTK1
Wireless 1D and 2D scanner with Bluetooth, 1 MP sensor, inductive charging and omnidirectional scanning for professional barcode capture.
NEW
£402.99
£483.59 Incl. VAT
3 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- 1D/2D scanning: captures linear barcodes, QR codes, Data Matrix, PDF417, etc.
- 1 MP sensor: 1,280 x 800 pixel resolution for omnidirectional scanning
- Bluetooth 4.0 connectivity with a range of up to 100 m
- Wireless inductive charging
- 3,250 mAh battery: up to 80,000 scans per charge
- Successful scan confirmation: Green Spot, 3GL, audible beep and vibration
- IP52 protection and drop resistance from a height of 1.8 m onto concrete
In the box
- 1x Datalogic Gryphon GBT4500 scanner

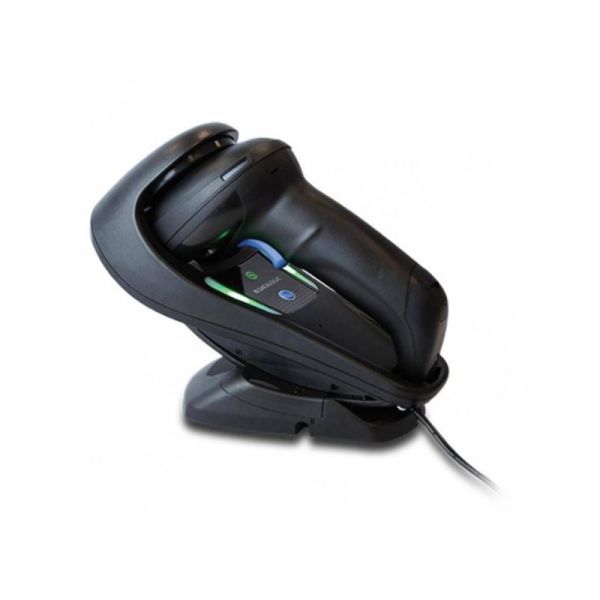

- 1x WLC4090 Bluetooth wireless charging dock
- 1x USB cable
Product description
Datalogic Gryphon GBT4500 - Wireless 1D and 2D scanning via Bluetooth
The Datalogic Gryphon GBT4500 is a wireless 1D and 2D barcode scanner designed for professional operations requiring mobility, accuracy and versatile scanning. It combines a 1-megapixel sensor with omnidirectional scanning and Bluetooth connectivity to facilitate work in retail, healthcare, services and other professional environments.
1 MP sensor and omnidirectional scanning
The 1280 x 800 pixel imager sensor allows codes to be captured from different orientations without the need for pre-alignment. It also offers image and document capture functions in BMP, JPEG and TIFF formats.
This Standard Range version supports 1D, 2D, postal, stacked and composite codes, including QR, Micro QR, Data Matrix, Aztec, MaxiCode and PDF417.
Bluetooth for greater freedom of movement
The GBT4500 features Bluetooth 4.0 with BLE and operates on the 2.4 GHz band. The manufacturer specifies a range of up to 100 metres in open space when using the base station, although the range may vary when connected directly to other Bluetooth devices.
Communication features data encryption and reader authentication, as well as the SPP profile to facilitate integration into various professional environments.
Contactless wireless charging
The inductive wireless charging system eliminates conventional electrical contacts between the reader and the base. This helps to reduce the cleaning and maintenance tasks associated with physical contact points.
Its replaceable 3250 mAh lithium-ion battery provides up to 80,000 scans per charge. The specified charging time using an external power supply is approximately 4 hours at 12 V DC.
Precise aiming and read confirmation
The aiming system uses a 650 nm red laser, whilst white illumination helps to clearly visualise the capture area. Motionix technology detects movement to facilitate the transition between reading modes.
A successful scan can be confirmed via Datalogic Green Spot, 3GL, LED indicators, an audible signal and vibration, offering different types of feedback depending on the working environment.
Ready for everyday professional use
The Gryphon GBT4500 features IP52 protection and is designed to withstand repeated drops from a height of 1.8 m onto concrete. It can operate between 0 and 50 °C and withstands ambient light levels of up to 100,000 lux.
Use cases and compatibility
This scanner is suitable for retail, point-of-sale, light manufacturing, laboratories, pharmacies, healthcare, access control, transport, entertainment, banking and public administration. The kit includes the WLC4090 Bluetooth dock with wireless charging and a USB connection for integration with professional systems.
Technical specifications:
| Feature | Value |
|---|---|
| Scanner type | Wireless |
| Compatible codes | 1D and 2D |
| Reading type | Omnidirectional |
| Image sensor | 1 MP |
| Sensor resolution | 1280 x 800 pixels |
| Motion tolerance | 35 IPS |
| Minimum print contrast | 15% |
| 1D resolution | 0.102 mm / 4 mils |
| PDF417 resolution | 0.127 mm / 5 mils |
| Data Matrix resolution | 0.195 mm / 7.5 mils |
| Wireless technology | Bluetooth 4.0 with BLE |
| Frequency | 2.4 GHz |
| Bluetooth profile | SPP |
| Wireless range | Up to 100 m in open space with a base station |
| Wireless security | Data encryption and reader authentication |
| Batch mode | Yes |
| Battery technology | Lithium-ion |
| Battery capacity | 3250 mAh |
| Readings per charge | Up to 80,000 |
| Charging time | 4 hours at 12 V DC |
| Charging system | Inductive wireless |
| Reading indicators | Green Spot, 3GL, LED, beeper and vibration |
| Protection | IP52 |
| Drop resistance | Repeated drops from 1.8 m onto concrete |
| ESD protection | 16 kV air discharge |
| Ambient light | 0 to 100,000 lux |
| Humidity | 0 to 95 per cent non-condensing |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -40 to 70 °C |
| Dimensions | 166 x 68 x 109 mm |
| Weight | 235 g |
| Colour | Black |
Files
Datalogic Gryphon GBT/GM4500 - Datasheet
Product Specs.
| Manufacturer part # | GBT4500-BK-BTK1 |
|---|---|
| EAN | 5706998728340 |
| Warranty | 3 years |
| Type of barcode scanner | Wireless |
| Reader | 1D & 2D |
| IP Rating | IP52 |
| Rugged | Not Sturdy |
