Cleyver Bar Large Room BYOD Video Conferencing Kit
Internal ref: CLEYBAR75MUK

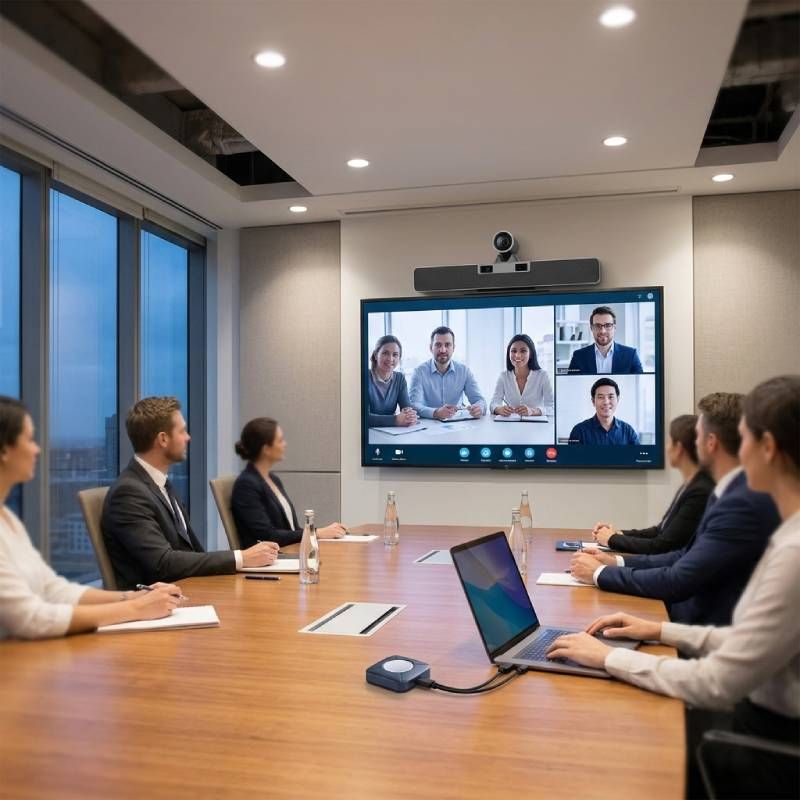

A complete video conferencing kit featuring a 4K dual-sensor camera bar with AI capabilities, a 75-inch 4K screen and a wall-mounting support, designed for large meeting rooms (10 people or more).
Key features
Cleyver Large Room DUALBAR PTZ
- Use: large meeting rooms
- Dual 4K camera: 180° rotating PTZ + 8.5 MP wide-angle lens
Samsung BE75FX-H Business TV 75'' UK
- For digital signage: 16/7 operation
- 75" 4K UHD display: large-format visuals with strong visual impact
Neomounts WL35-750BL18 Wall Mount 43–98 Inch
- Wall mount for 43” to 98” screens supporting extra-large professional displays
- Tilt function for improved viewing angles and reduced reflections
In the box
- 1 x Cleyver Large Room Dualbar PTZ
- 1 x Wireless sharing button
- 1 x Power adapter
- 1 x Remote control
- 1 x USB cable
- 1 x Wall mount (with screws)
- 1 x Documentation
- 1 X 75" professional screen
- 1 X Remote control
- 2 X Batteries
- 1 X Power cable
- 1 x User documentation
- 1 x Neomounts WL35-750BL18 wall mount
- 1 x Mounting hardware kit
- 1 x Installation manual
Product description
- Cleyver Large Room DUALBAR PTZ
- Samsung BE75FX-H Business TV 75'' UK
- Neomounts WL35-750BL18 Wall Mount 43–98 Inch
Cleyver Large Room Dualbar PTZ
All-in-one solution designed for large meeting spaces
The Cleyver Large Room Dualbar PTZ is a 3-in-1 video conferencing bar built for large meeting rooms accommodating 12 participants or more. It combines two 4K cameras, a high-fidelity audio system, and advanced AI technology to deliver a smooth, professional meeting experience.
Exceptional video capture
The Dualbar PTZ covers every angle of the room with outstanding precision thanks to its dual 4K camera system: the 8.5 MP wide-angle sensor provides a 117° panoramic view, while the mechanical PTZ lens offers 12x optical zoom and up to 180° rotation.
With its advanced AI features — auto-framing, smart group detection, and speaker tracking — the Dualbar PTZ redefines modern video conferencing. All features can be activated with a simple hand gesture in front of the camera, for a seamless user experience.
Powerful, perfectly balanced sound
Audio quality is a real strength of this Cleyver video bar. The 6 beamforming microphones capture voices from up to 8 metres away, suppress background noise, and automatically adjust sound levels according to the room’s acoustics. Combined with 2 x 8W stereo speakers, they deliver immersive audio for Teams, Zoom, Webex, Google Meet and more.
A seamless collaboration experience
Thanks to the BYOM/BYOD function, you can connect instantly using the included wireless button: share your screen, use the built-in microphones and speakers, and start your meeting directly from your own device. Its universal compatibility with major platforms ensures easy adoption across all types of businesses.
Comprehensive connectivity and simple installation
Designed to fit any meeting room setup, the Dualbar PTZ offers extensive connectivity: USB-C 3.0, HDMI, LAN RJ45, Bluetooth 5.0, plus an EXT MIC RJ45 port for an external microphone. It comes with both a wall mount and a table stand, ensuring seamless integration in any professional environment.
Technical specifications:
- Device type: 3-in-1 video conferencing bar
- Capacity: large rooms (12 people)
- Dual 4K camera: 8.5 MP wide-angle sensor + mechanical PTZ module
- 180° rotation
- Field of view: 107° to 117°
- 12x optical zoom
- Automatic electronic privacy shutter
- Stereo speakers: 2 x 8W
- 6 beamforming microphones
- Voice pickup distance: 8 m
- AI features: smart gallery, speaker detection, group detection, speaker tracking, gesture detection and recognition
- BYOM/BYOD screen sharing via Wi-Fi wireless button
- Infrared remote control
- Bluetooth 5.0
- Connectivity: 1 x USB-C 3.0; 1 x USB-A 3.0; 2 x HDMI; 1 x LAN RJ45; 1 x EXT MIC RJ45; 1 x DC 12V power input
Samsung BE75FX-H: Professional 4K Digital Signage for Commercial Environments
The Samsung BE75FX-H is a 75-inch digital signage flat panel designed for professional applications requiring high-quality visual communication. With 4K Ultra HD resolution and built-in Tizen processing, it delivers impactful content without additional hardware.
Designed for Commercial Deployments
This signage display is engineered for retail, corporate, hospitality, and public venue applications. The 16/7 operational rating provides reliability for extended daily use, whilst the flat screen design with three bezel-less sides enables clean installations and multi-display configurations. The legs stand ensures stable placement in various commercial settings.
4K Visual Performance with HDR10+ Technology
The 3840 x 2160 pixel resolution delivers sharp, detailed imagery across the 190.5 cm diagonal display. HDR10+ support enhances contrast and colour accuracy, whilst Motion Xcelerator technology ensures smooth video playback. The 16:9 native aspect ratio is optimised for standard digital content formats, making it suitable for promotional materials, wayfinding, and information displays.
Integrated Tizen Platform for Standalone Operation
The built-in Tizen operating system eliminates the need for external media players, reducing hardware costs and simplifying installations. Content can be managed directly through the integrated web browser and media playback features. The platform supports a 29-language OSD, facilitating deployment across diverse markets and enabling straightforward configuration through intuitive on-screen menus.
Versatile Connectivity Options
Three HDMI ports accommodate multiple input sources, whilst Ethernet LAN and Wi-Fi 5 (802.11ac) provide network connectivity for content distribution and remote management. The inclusion of Bluetooth 5.3 enables wireless peripheral connectivity. USB 2.0 ports support local media playback and firmware updates. Audio Return Channel and Enhanced Audio Return Channel capabilities simplify audio routing in integrated AV systems.
Built-in Audio and Broadcast Features
Dual 10W speakers (20W total RMS) deliver 2.0 channel audio without external amplification. The integrated TV tuner supports DVB-C, DVB-S2, and DVB-T2 HD broadcast standards, enabling live television display where required. Common Interface Plus (CI+ 1.4) compatibility allows conditional access module integration for encrypted content. Teletext and Electronic Programme Guide functions provide additional broadcast capabilities.
Energy-Efficient Operation
With G-rated energy efficiency for both SDR and HDR content, the display consumes 138 kWh per 1000 hours in SDR mode and 199 kWh in HDR mode. Standby power consumption is limited to 0.5W. The eco sensor adjusts brightness based on ambient lighting conditions, optimising energy use whilst maintaining visibility. AC input voltage ranges from 220-240V, accommodating standard commercial power supplies.
Key Technical Specifications
| Specification | Value |
| Display Diagonal | 190.5 cm (75") |
| Display Technology | LED |
| Resolution | 3840 x 2160 pixels |
| HDR Technology | HDR10+ |
| Operating Hours | 16/7 |
| Operating System | Tizen |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| HDMI Ports | 3 |
| Audio Output | 20W (2.0 channels) |
| Energy Class (SDR/HDR) | G / G |
| Dimensions (with stand) | 166.8 x 95.8 x 7.7 cm |
| Weight (with stand) | 22.4 kg |
| Standby Power | 0.5 W |
| Warranty | 2 years |
Neomounts WL35-750BL18 Wall Mount with Tilt for Extra-Large Displays
Tiltable wall mount for optimal viewing comfort
The Neomounts WL35-750BL18 supports screens from 43 to 98 inches and includes a tilt function to adjust the viewing angle. This helps to reduce glare and improve visibility in various lighting conditions.
Secure and space-saving installation
Its low-profile design keeps the screen close to the wall, ensuring a clean and professional appearance. The robust construction provides stable and secure mounting for large and heavy displays.
Wide compatibility with VESA standards
This mount supports multiple VESA patterns, making it compatible with a wide range of professional displays and large-format screens. It simplifies integration into existing AV environments.
Reliable performance for professional use
Designed for demanding environments, the WL35-750BL18 offers a high load capacity and durable build, ensuring long-term reliability for business installations.
Use cases and compatibility
Suitable for meeting rooms, corporate environments and large-format display installations, this wall mount is compatible with VESA-standard screens and designed for setups requiring tilt adjustment.
Technical specifications:
| Specification | Value |
|---|---|
| Product type | Wall mount |
| Screen size compatibility | 43" to 98" |
| Mount type | Tilt |
| VESA compatibility | Multiple VESA patterns supported |
| Profile | Low profile |
| Installation | Wall-mounted |
| Usage | Professional environments |
Product Specs.
| Manufacturer part # | ODLDUALBARPTZ |
|---|---|
| EAN | 3760357671700 |
| Warranty | 2 years |
| Video Solution type | Videoconferencing Bar |
| Room Size | Large Meeting Room (+10) |
| Connects to | With PC- Laptop |
| Compatible With | All Softphones / UC |
| Camera resolution | 4K |
| Camera field of view | 117° |
| Camera Features | Auto Framing and Tracking |
| AI-compatible | Yes |
| Other Features | Integrated video conferencing, Built in Microphones, Content Sharing, PC/Mac Compatible, Softphone Compatible, Remote Control Included, Privacy Shutter |
| Size | 600 x 208.6 x 127.3mm |
| Manufacturer part # | LH75BEFHLGKXXU |
|---|---|
| EAN | 0880609747421 |
| Warranty | 3 years |
| By Sector | Retail, Hotels and restaurants, Corporate and Office |
| Use type | Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED - LCD |
| Screen Orientation | Horizontal |
| Screen Size | 75 inches |
| Screen Size | 75'' |
| Resolution | 4K |
| Operating hours | 16h per day |
| Brightness | 300 - 350 cd/m² |
| Other Features | Remote Control Included, With TV Tuner |
| VESA standard | 400 × 300 mm |
| EPREL certification | 2285807 |
| Energy efficiency class | G |
| Manufacturer part # | WL35-750BL18 |
|---|---|
| EAN | 8717371443375 |
| Warranty | 2 years |
| By Sector | Public administrations, Education, Corporate and Office, Hybrid work |
| Accessory Type | Wall mounting bracket |
| Is Accessory of | Screen |
| Lone worker protection | No |
Accessories
Ref: ODLDUALBARSUPTV
Frequently Asked Questions
Currently there are no questions for this product.
