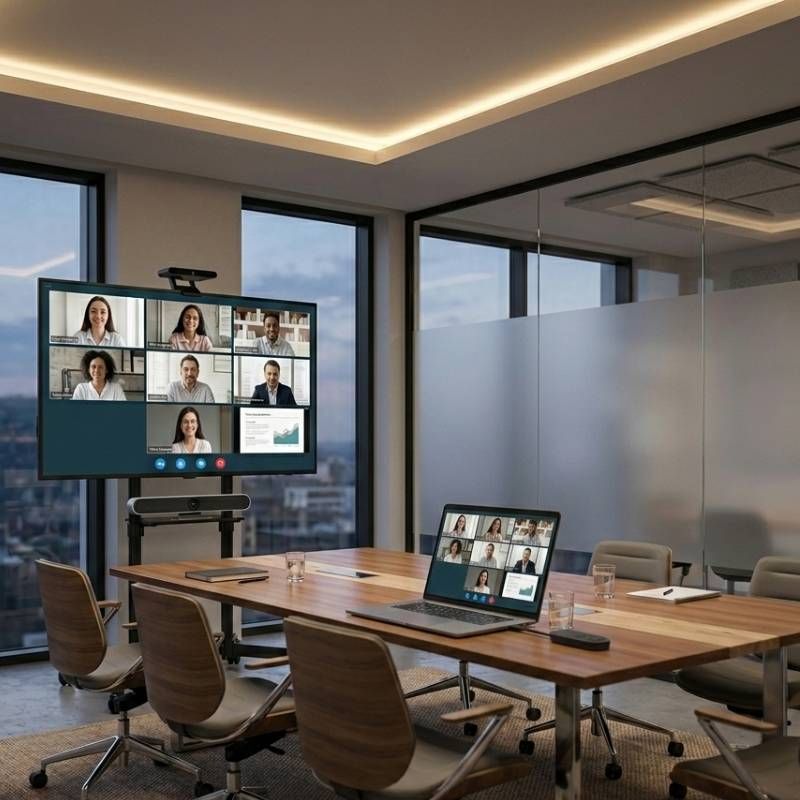

Cleyver BAR BYOD Medium Room conferencing kit + Screen sharing

Internal ref: ODBARML55RUK

Complete video conferencing solution for medium meeting rooms, combining a Cleyver 4K video bar with 10x optical zoom, a 55-inch Samsung Business TV, wireless screen sharing and a mobile TV trolley for flexible collaboration.

SAVING £505.63 NEW PACK

Pay in 3 interest-free payments of Show more

Key features

Cleyver Medium Large Room Bar 4K Zoom 10x
  • 4K Ultra HD camera with 10x digital zoom and 120° angle
  • Advanced AI features: auto-framing and voice tracking
Cleyver Share System Wireless Screen Sharing
  • Wireless screen sharing with a single click
  • Standalone solution with no software or drivers required
Samsung BE55FX-H Business TV 55'' UK
  • For digital signage: 16/7 operation
  • 55" 4K UHD display: sharp and impactful image quality
Neomounts NS-M1250BLACK TV Trolley 37-70''
  • Maximum weight capacity: Supports up to 70 kg for stability.
  • Size compatibility: Fits screens from 37'' to 70'' for versatile use.
Show more Show less

In the box

  • 1 x Video conferencing bar
  • 1 x Remote control
  • 1 x USB-C cable
  • 1 x Mounting bracket
  • 1 x Cleyver Share System
  • 1 x Documentation
  • 1 x 55" professional screen
  • 1 x Remote control
  • 2 x Batteries
  • 1 x Power cable
  • 1 x User documentation

1 x Neomounts NS-M1250BLACK TV Trolley 37-70''


Contact our experts - Call us!
Live Chat

Product description

Cleyver Medium Large Room Bar 4K – Audiovisual performance for medium-sized rooms

Professional 4K video quality

Equipped with a 4K Ultra HD camera with an 8 MP CMOS sensor and 10x digital zoom, this bar guarantees a clear and detailed image for all your hybrid meetings. The 120° field of view effectively covers rooms with up to 12 people.

Artificial intelligence for better communication

AI features ensure dynamic auto-framing and accurate speaker tracking, making conversations more natural and engaging.

Powerful and accurate audio

The 6 MEMS microphones detect voices up to 6 metres away, while the two 10W stereo speakers deliver clear, balanced sound. Advanced audio processing ensures smooth full-duplex conversations.

Extended connectivity and privacy

Bluetooth 5.0 connectivity allows the bar to be used as an external speaker. The electric privacy cover protects the camera when not in use.

Key technical features

Type 3-in-1 video conferencing bar
Camera resolution 4K Ultra HD
Zoom 10x digital
Field of view 120°
Microphones 6 MEMS microphones
Speakers 2 × 10 W stereo
Bluetooth Yes, version 5.0
Connectivity USB-C, HDMI, Line In/Out, RJ45 external microphone

Cleyver Share System – Instant wireless collaboration

Quick and intuitive screen sharing

This wireless system allows you to project your computer screen onto a meeting room screen with a single click, improving the flow and efficiency of meetings.

Video conferencing compatible

Connect a video conferencing camera directly to the USB receiver and share your Teams or Zoom meetings with all participants in the room.

Simple and secure installation

Operating without software or drivers, the system ensures quick and reliable implementation in all professional environments.

Key technical features

Transmission 5 GHz Wi-Fi
Max resolution 3840 × 2160 @ 30 fps
Latency Approximately 150 ms
Interfaces HDMI, USB-C, USB-A
Range ≈ 10 m

Samsung BE55FX-H: Professional 4K Signage Display with Integrated Intelligence

The Samsung BE55FX-H delivers professional-grade digital signage with a 55-inch 4K UHD LED panel, built-in Tizen processing, and 16/7 operational capability, designed for retail, corporate, and hospitality environments requiring reliable visual communication.

Purpose-Built for Commercial Deployment

This signage flat panel combines a 3840 x 2160 resolution display with Motion Xcelerator technology and HDR10+ support, ensuring sharp, fluid visuals for product presentations, wayfinding, information displays, and promotional content across retail stores, corporate lobbies, hospitality venues, and public spaces.

Standalone Operation with Built-In Tizen Processor

The integrated Tizen operating system eliminates the need for external media players, enabling direct content management, web browsing, and application execution. On-Screen Display supports 29 languages, facilitating deployment in diverse international environments. The system includes Media Home functionality for streamlined content organisation.

Extended Operating Reliability

Rated for 16/7 operation, this display is engineered for demanding commercial schedules requiring extended daily uptime. The eco sensor optimises power consumption based on ambient conditions, while Energy Efficiency Class G (SDR/HDR) ratings support operational cost planning.

Comprehensive Connectivity Infrastructure

Three HDMI ports with Audio Return Channel (ARC) and Enhanced Audio Return Channel (eARC) support simplified audio routing. Ethernet LAN and Wi-Fi 5 (802.11ac) connectivity provide flexible network integration options. Additional interfaces include RF inputs for broadcast reception, USB 2.0 for local content, and Bluetooth 5.3 for wireless peripherals. DVB-C, DVB-S2, and DVB-T2 HD tuners are integrated, along with Common Interface Plus (CI+ 1.4) support.

Integrated Audio and Visual Enhancements

Built-in 2.0 channel speakers with 20W RMS output deliver clear audio for announcements and multimedia content. Contrast Enhancer technology optimises image quality dynamically. The display features a flat screen with 3-bezel-less design, maximising visible content area for videowall configurations or standalone installations. The legs stand provides stable mounting, with dimensions of 1224.6 mm width, 707.8 mm height, and 76.6 mm depth when assembled.

Management and Broadcast Capabilities

Electronic Programme Guide (EPG) and Teletext functionality support broadcast content delivery. Sound mirroring enables audio distribution to compatible devices. USB port lock secures physical connections, while the web browser facilitates cloud-based content access and digital signage platform integration.

Key Technical Specifications

Specification Value
Display Diagonal 139.7 cm (55")
Resolution 3840 x 2160 pixels (4K UHD)
Display Technology LED
HDR Support HDR10+
Operating Hours 16/7
Operating System Tizen
Connectivity Wi-Fi 5, Ethernet LAN, Bluetooth 5.3
HDMI Ports 3
Audio Output 20 W RMS (2.0 channels)
Tuners DVB-C, DVB-S2, DVB-T2 HD
Dimensions (with stand) 122.5 × 70.8 × 7.7 cm
Weight (with stand) 9.6 kg
Energy Class (SDR) G
Standby Power 0.5 W
Warranty 2 years

Neomounts NS-M1250BLACK TV Trolley 37-70''

The Neomounts NS-M1250BLACK is a mobile floor stand designed for flat screens up to 70 inches. This versatile trolley is perfect for when mounting options are limited, allowing for exceptional flexibility in display placement.

Experience the freedom of a mobile TV stand that allows you to share large screen content in multiple locations. The clever design means you can adjust the screen position for both standing and seated audiences easily. For events or presentations, this feature makes it adaptable to different environments.

Maximum weight capacity: The Neomounts stand can support up to 70 kg, providing a reliable base for your TV or display. Size compatibility: It caters to screens between 37'' and 70", making it suitable for a wide range of displays.

Effortless mobility: It is equipped with four durable wheels, making it easy to roll through doorways or over thresholds, providing flexibility in your setup. Two of these wheels feature a brake for added stability when needed.

Integrated cable management: The stand incorporates a smart cable management system that keeps wires hidden and organized, maintaining a clean and professional appearance.

Customisable positioning: The rotatable design allows for 90° rotation, helping you find the perfect viewing angle for your audience.

This trolley stand is particularly beneficial for educational settings, corporate environments, and event spaces. Imagine setting up your display in one room and quickly moving it to another without hassle. The Neomounts TV trolley is not only functional but also enhances the overall aesthetic of your space.

Key specifications:

Screen Size Range 37" to 70" (94 - 178 cm)
Max Weight Capacity  70 kg
VESA Compatibility 200 x 200 to 600 x 400 mm
Height 1370 mm
Width 920 mm
Depth 700 mm
Material Steel
Colour Black



Files

ODMLCAMBAR4K - Datasheet
ODSHARE - Datasheet

Product Specs.

Cleyver Medium Large Room Bar 4K Zoom 10x
Manufacturer part #ODMLCAMBAR4K
EAN3760357671731
Warranty2 years
Video Solution typeVideoconferencing Bar
Room SizeMedium Meeting Room (6-12)
Connects toWith PC- Laptop
Compatible WithAll Softphones / UC
Camera resolution4K
Camera field of view120°
Camera FeaturesAuto Framing and Tracking
AI-compatibleYes
Cleyver Share System Wireless Screen Sharing
Manufacturer part #ODSHARE
EAN3760357671748
Warranty2 years
Presentation system typeWireless presentation
Screen sharing fromPC/Mac
Sharing optionsButton
Works withApple AirPlay, Google Cast
Resolution4K
Number of buttons included1
ConnectivityFor USB-C
Samsung BE55FX-H Business TV 55'' UK
Manufacturer part #LH55BEFHLGKXXU
EAN8806097474258
Warranty3 years
By SectorRetail, Hotels and restaurants, Corporate and Office
Use typeDigital signage
Intended useIndoor screen
Screen typeFlat Screen
Screen TechnologyLED - LCD
Screen OrientationHorizontal
Screen Size55 inches
Screen Size55''
Resolution4K
Operating hours16h per day
Brightness300 - 350 cd/m²
Other FeaturesRemote Control Included, With TV Tuner
VESA standard200 × 200 mm
EPREL certification2285804
Energy efficiency classG
Neomounts NS-M1250BLACK TV Trolley 37-70''
Manufacturer part #NS-M1250BLACK
EAN8717371448066
Warranty5 years
Accessory TypeSupport
Is Accessory ofScreen
ATEX certifiedWithout ATEX certification
Lone worker protectionNo
