BenQ Board Master RM6504

Product description

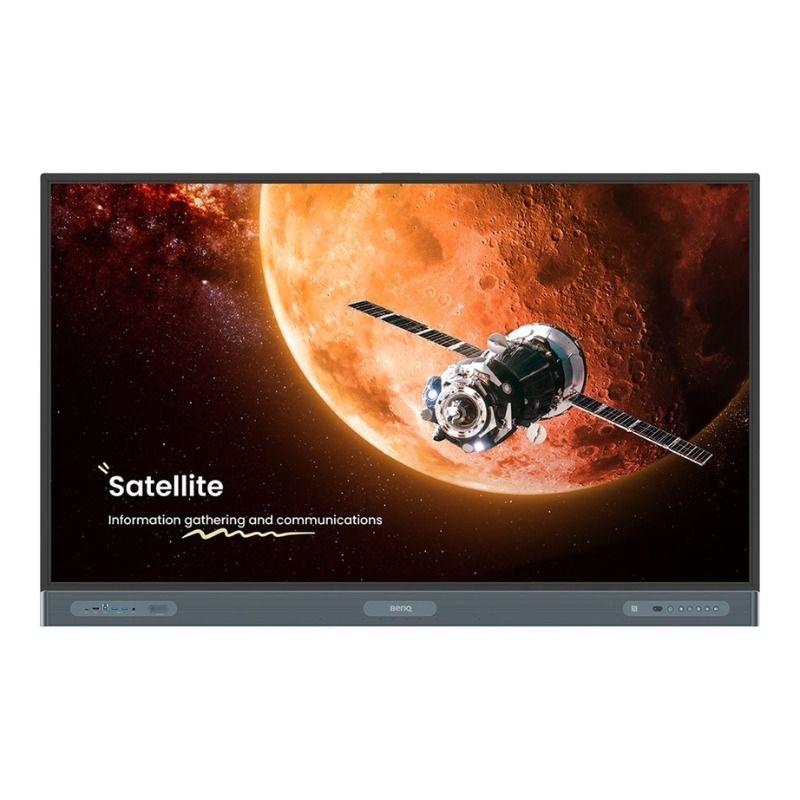

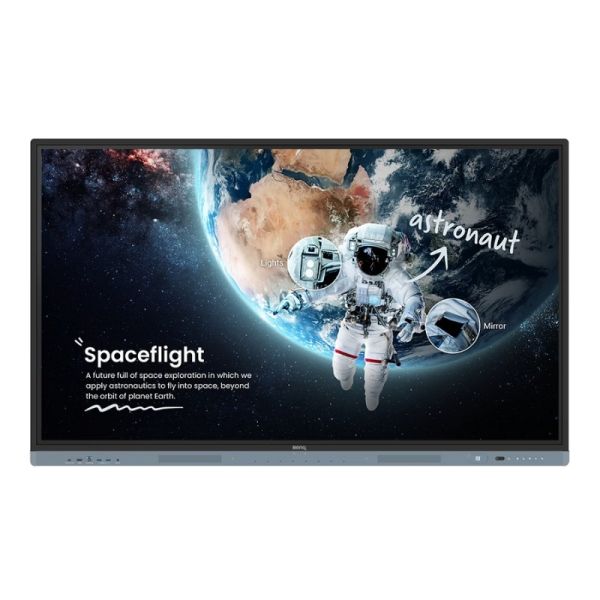

BenQ Board Master RM6504 Interactive Display

The BenQ RM6504 is a 65-inch 4K UHD interactive flat panel designed to enhance teaching and collaboration. With its intuitive touch technology, built-in Android system, and classroom-friendly software, it delivers a smart and interactive experience for educators and students alike.

Display Overview

• 65” 4K UHD (3840 x 2160) LED-backlit panel
• Brightness: 450 nits (typical)
• Infrared touch technology supporting up to 40 points
• Dual 20W speakers with crystal-clear classroom audio
• Germ-resistant, anti-glare glass with 9H hardness
• Eye-Care technology with low blue light and flicker-free performance

Video Performance

The RM6504 features a bright 4K UHD display (3840 x 2160) with a 16:9 aspect ratio and a 1200:1 contrast ratio, ensuring vibrant and sharp images. Its 8 ms response time delivers smooth visuals, while the anti-glare, 3.2 mm thick glass reduces reflections for comfortable viewing. The built-in Eye-Care solution minimises blue light and flicker to protect students’ eyesight during long lessons. With DLED backlight and a wide viewing angle, the RM6504 provides clear visuals from anywhere in the room.

Connectivity & Compatibility

Compatible with Windows, macOS, Linux, Chrome OS, and Android, the RM6504 offers flexible connection options via HDMI, USB-C, VGA, DisplayPort, RS232, and LAN ports. It also includes front and rear USB ports for convenient device access and supports USB-C power delivery (up to 65W). Network-ready with LAN In/Out, it integrates easily into connected classrooms and IT infrastructures.

Collaborative & Smart Features

Powered by Android 13, the RM6504 supports BenQ’s AMS account management, EZWrite digital whiteboard, InstaShare 2 wireless sharing, and X-Sign Broadcast for instant announcements. Teachers can annotate on any screen with the floating tool, while students collaborate seamlessly using multi-touch input. Eye-Care technology, germ-resistant glass, and energy-saving features make it a safe, sustainable, and interactive classroom solution.

Technical Specifications

• Display Size: 65” DLED
• Resolution: 3840 x 2160 (4K UHD)
• Brightness: 450 nits (without glass) / 400 nits (with glass)
• Contrast Ratio: 1200:1
• Response Time: 8 ms
• Touch: Infrared, up to 40 points (Windows) / 32 points (Android)
• Glass: 3.2 mm anti-glare, 9H hardness, germ-resistant
• Speakers: 2 x 20W
• Microphone: 8-array mic
• Operating System: Android 13
• CPU: A73x4 + A53x4, GPU: Mali G52 MP8
• Memory: 8 GB RAM, 32 GB storage
• Connectivity: 3x HDMI 2.0, 1x DP 1.2a, 1x VGA, 3x USB 3.0 Type-A, 3x USB-C, 1x RS232, 2x LAN (In/Out)
• Audio Out: SPDIF (Optical), 3.5 mm jack
• Power Supply: AC 100V–240V, 50/60 Hz
• Typical Power Use: 106.1 W / Max: 395 W
• Dimensions (W x H x D): 1489.3 × 905.8 × 87.1 mm
• Weight: 37.8 kg
• Mount: VESA 600 x 400 mm
• Operating Temperature: 0°C–40°C
