Barco Bar Small Room BYOD Video Conferencing Kit
Internal ref: BARCOBARQE55SM

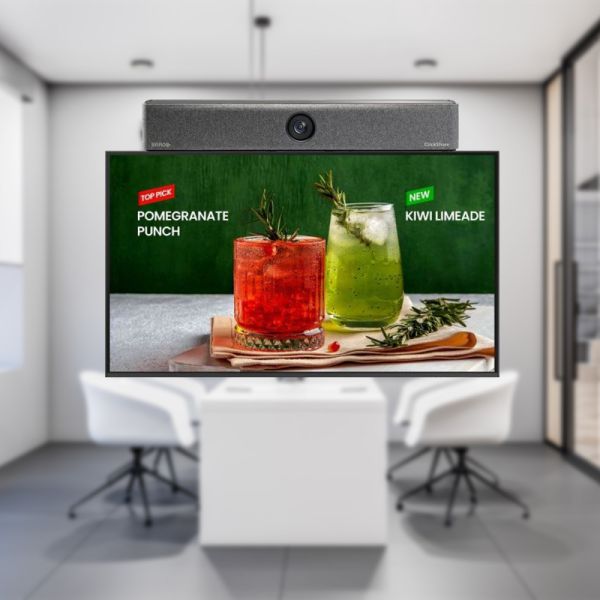

Complete video conferencing kit with 4K video bar featuring wireless sharing, 55-inch 4K display and accessories, designed for small meeting rooms with 4–6 participants.
Key features
Barco ClickShare Bar CB Core with 1 button
- All-in-one video bar and content sharing button
- Clear, high-quality stereo audio
Samsung BE55FX-H Business TV 55''
- For digital signage: 16/7 operation
- 55" 4K UHD display: sharp and impactful image quality
Kimex wall mount for 37'' TV
- Compatible with screens from 37" to 86"
- Supports up to 80 kg
In the box
- 1 x CB Core ClickShare Bar - EU Version
- 1 x ClichShare Button
- 1 x 55" professional screen
- 1 x Remote control
- 2 x Batteries
- 1 x Power cable
- 1 x User documentation
- 1 x Kimex wall mount for 37'' TV
Product description
- Barco ClickShare Bar CB Core with 1 button
- Samsung BE55FX-H Business TV 55''
- Kimex wall mount for 37'' TV
Barco ClickShare Bar CB Core with 1 Button
Effortless Hybrid Conferencing
Experience immersive, hassle-free hybrid meetings with the ClickShare all-in-one video bar. By simply opening your laptop, you can start a meeting and connect team members in the office with remote participants in less than 7 seconds. Enjoy crisp views, crystal-clear audio, and easy, natural communication between meeting attendees both in person and remotely. No wires, no hassle. ClickShare all-in-one video bars enable easy, wireless conferencing, ensuring everyone feels truly seen and heard
Collaboration without limits
ClickShare video bars deliver effective, effortless collaboration in hybrid meeting rooms with any video conferencing platform. For IT managers, these carbon-neutral video bars ensure simplified installation, unparalleled flexibility, and compatibility. Ensure crystal-clear, natural communication between meeting participants joining from different locations thanks to stereo speakers, acoustic echo cancellation, and background noise cancellation. Present content and remote participants side-by-side on one or two screens (with the ClickShare Bar Pro option) for a more collaborative and inclusive experience. Plus, enjoy a clear, expansive view of the meeting room and its in-person participants thanks to the 4K camera with a 120° field of view and multiple framing options.
Key Features:
- Windows 10 OS and above macOS 11 (Ventura) and above Android v13 and above (ClickShare App) iOS 16 and above (ClickShare App)
- 4K UHD (3840*2160) video output at 30Hz. HDMI 1.4b or USB-C DP ALT mode (DisplayPort 1.2)
- 4K Camera, AI 3x Zoom/ePTZ, 120°
- Group Framing and Composition Mode with up to 4 People
- ClickShare App Desktop and Mobile
- Max. Range 30m between ClickShare button and ClickShare bar
- Connections 1x USB-C 3.1 (DP) to display, 1x USB-A 2.0, 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (side)
- Anti-theft system Kensington lock (back and bottom)
- Wireless conferencing via app or button
- Power supply Standard 110/220V AC or USB-C plug (back)
- Network LAN and WiFi connection
- Dimensions (HxWxD): 98 x 640 x 101 mm
- Weight:2500 gr
Samsung BE55FX-H: Professional 4K Signage Display with Integrated Intelligence
The Samsung BE55FX-H delivers professional-grade digital signage with a 55-inch 4K UHD LED panel, built-in Tizen processing, and 16/7 operational capability, designed for retail, corporate, and hospitality environments requiring reliable visual communication.
Purpose-Built for Commercial Deployment
This signage flat panel combines a 3840 x 2160 resolution display with Motion Xcelerator technology and HDR10+ support, ensuring sharp, fluid visuals for product presentations, wayfinding, information displays, and promotional content across retail stores, corporate lobbies, hospitality venues, and public spaces.
Standalone Operation with Built-In Tizen Processor
The integrated Tizen operating system eliminates the need for external media players, enabling direct content management, web browsing, and application execution. On-Screen Display supports 29 languages, facilitating deployment in diverse international environments. The system includes Media Home functionality for streamlined content organisation.
Extended Operating Reliability
Rated for 16/7 operation, this display is engineered for demanding commercial schedules requiring extended daily uptime. The eco sensor optimises power consumption based on ambient conditions, while Energy Efficiency Class G (SDR/HDR) ratings support operational cost planning.
Comprehensive Connectivity Infrastructure
Three HDMI ports with Audio Return Channel (ARC) and Enhanced Audio Return Channel (eARC) support simplified audio routing. Ethernet LAN and Wi-Fi 5 (802.11ac) connectivity provide flexible network integration options. Additional interfaces include RF inputs for broadcast reception, USB 2.0 for local content, and Bluetooth 5.3 for wireless peripherals. DVB-C, DVB-S2, and DVB-T2 HD tuners are integrated, along with Common Interface Plus (CI+ 1.4) support.
Integrated Audio and Visual Enhancements
Built-in 2.0 channel speakers with 20W RMS output deliver clear audio for announcements and multimedia content. Contrast Enhancer technology optimises image quality dynamically. The display features a flat screen with 3-bezel-less design, maximising visible content area for videowall configurations or standalone installations. The legs stand provides stable mounting, with dimensions of 1224.6 mm width, 707.8 mm height, and 76.6 mm depth when assembled.
Management and Broadcast Capabilities
Electronic Programme Guide (EPG) and Teletext functionality support broadcast content delivery. Sound mirroring enables audio distribution to compatible devices. USB port lock secures physical connections, while the web browser facilitates cloud-based content access and digital signage platform integration.
Key Technical Specifications
| Specification | Value |
| Display Diagonal | 139.7 cm (55") |
| Resolution | 3840 x 2160 pixels (4K UHD) |
| Display Technology | LED |
| HDR Support | HDR10+ |
| Operating Hours | 16/7 |
| Operating System | Tizen |
| Connectivity | Wi-Fi 5, Ethernet LAN, Bluetooth 5.3 |
| HDMI Ports | 3 |
| Audio Output | 20 W RMS (2.0 channels) |
| Tuners | DVB-C, DVB-S2, DVB-T2 HD |
| Dimensions (with stand) | 122.5 × 70.8 × 7.7 cm |
| Weight (with stand) | 9.6 kg |
| Energy Class (SDR) | G |
| Standby Power | 0.5 W |
| Warranty | 2 years |
Kimex Wall Mount for 37'' TV
Compact and functional design
The Kimex 012-1564 fixed wall mount is designed to make the most of your space. Its sturdy and discreet design allows you to mount large screens without compromising the aesthetics of the environment. Thanks to its ultra-slim profile, the screen sits just 2.9 cm from the wall, providing a clean and modern finish.
Quick and secure installation
This model is delivered folded, with a height of 8 cm, and can be easily unfolded for installation like any other Kimex mount. It includes a spirit level and two vertical cords that make it easy to intuitively hook the VESA bars onto the wall plate. Everything is designed to ensure a quick, precise, and hassle-free installation.
Enhanced security
For public or professional environments, the mount features an anti-theft system. Once installed, you can add a padlock (reference 012-9002) to ensure maximum screen security. This makes it a reliable solution for waiting rooms, offices, or shared spaces.
Professional aesthetics
In addition to its functionality, the mount stands out for its modern and understated design. Its black steel structure blends seamlessly with any décor style, and its ultra-slim profile allows the screen to sit flush against the wall, without protruding or taking up unnecessary space.
Technical specifications:
- Reference: 012-1564
- TV compatibility: 37" to 86"
- VESA compatibility: 200x200 to 600x400
- Installation: Wall-mounted
- Function: Fixed
- Distance from wall: 2.9 cm
- Maximum load: 80 kg
- Anti-theft system: Yes (optional padlock)
- Included accessories: Screws
- Colour: Black
- Material: Steel
- Item weight: 2 kg
Files
ClickShare_Bar_Core-EN
BEFX-H - Serie leaflet
Product Specs.
| Manufacturer part # | R9861632EUB1 |
|---|---|
| EAN | 5415334048232 |
| Warranty | 1 year |
| By Sector | Manufacturing , Education, Corporate and Office |
| Video Solution type | Videoconferencing Bar |
| Room Size | Small Meeting Room (4-6) |
| Connects to | With PC/Laptop |
| Compatible With | All Softphones / UC |
| Camera resolution | 4K |
| Camera field of view | 120° |
| Camera Features | Auto Framing |
| Other Features | Integrated video conferencing, Built in Microphones, Content Sharing, PC/Mac Compatible, Softphone Compatible, With Windows, All in One, BYOD, MAC compatible, Noise Reduction |
| Size | 98 x 640 x 101 mm |
| Manufacturer part # | LH55BEFHLGUXEN |
|---|---|
| EAN | 8806097474180 |
| Warranty | 3 years |
| By Sector | Retail, Hotels and restaurants, Corporate and Office |
| Use type | Digital signage |
| Intended use | Indoor screen |
| Screen type | Flat Screen |
| Screen Technology | LED / LCD |
| Screen Orientation | Horizontal |
| Screen Size | 55" |
| Resolution | 4K |
| Operating hours | 16h per day |
| Brightness | 300 - 350 cd/m² |
| Other Features | Remote Control Included, With TV Tuner |
| VESA standard | 200 × 200 mm |
| EPREL certification | 2285804 |
| Energy efficiency class | G |
| Manufacturer part # | 012-1564 |
|---|---|
| EAN | 3700685410381 |
| Warranty | 3 years |
| Accessory Type | Wall mounting bracket |
| Is Accessory of | Screen |
| Lone worker protection | No |
