Caterpillar

Caterpillar S52 tough phone

DESIGNED TO BE SEEN MADE TO BE USED

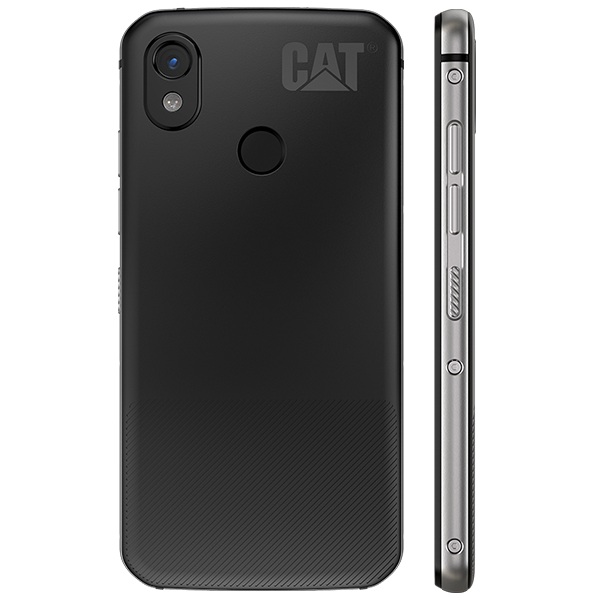

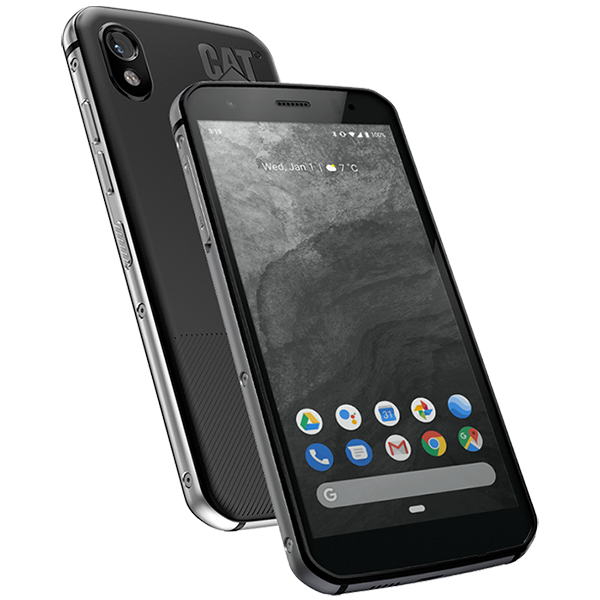

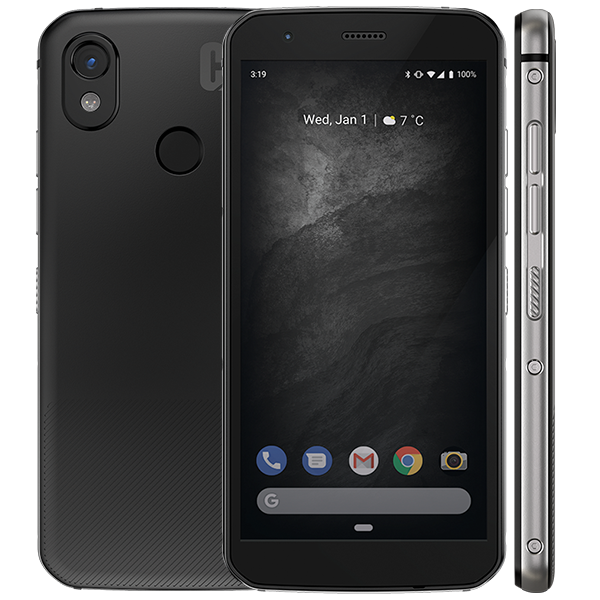

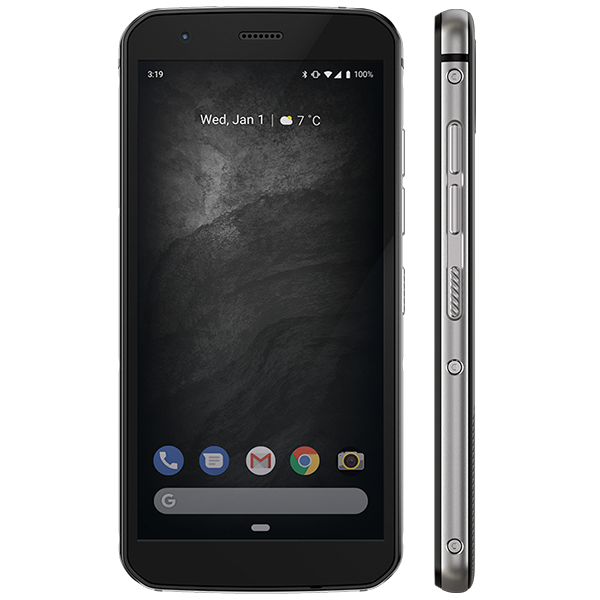

CATERPILLAR S52 TOUGH PHONE
CATERPILLAR S52 TOUGH PHONE
CATERPILLAR S52 TOUGH PHONE
CATERPILLAR S52 TOUGH PHONE

Being the world’s largest construction equipment manufacturer, ruggedness and military grade toughness are an integral part of every CAT product. This is evident seeing that every one of their smartphones are tested to the highest military spec meaning they can withstand extreme temperature ranges, being fully submerged underwater while also being sand, dust and dirt resistant, meaning they can survive in the most harsh conditions.

Why choose CAT S52 ?

Tough yet sleek design

Tough yet sleek design

The CAT S52 Smartphone is both thin and lightweight being only 9.69mm thick and weighing just 210g which makes its size similar to other regular smartphones on the market. It is made with Gorilla 6 glass screen and comes with IP68 protection rating which also guarantees the toughness and ruggedness that is known to come with all CAT products.

Top Quality camera

Top Quality camera

The camera on this phone is one that can very easily compete with any other smartphone of any kind on the market. With a 12MP rear camera and 8MP front camera, even in low light, this phone guarantees top quality photos every time.

Smartphone specifications

Smartphone specifications

Despite being a phone built to be tough and rugged it also has the specs which make it compete with the greatest of smartphones available. A battery with 29 hours talk time ensures a long life with no need to charge your phone regularly. Its bright 5.65” HD display screen ensures easiness of use and its 64GB memory and 4GB RAM offers great storage with fast running speeds.

BEST IN CLASS CAMERA

The Cat S52’s camera is best-in-class. With fast and accurate focusing thanks to its dual pixel Sony sensor, and its bright f/1.8 aperture and large 1.4µm pixel size that delivers great low-light performance, it’s the best camera available on a rugged phone.

BEST IN CLASS CAMERA

Important Features

  • 9.69mm thickness and weighs just 210 grams, meaning that it is pocket friendly and can be taken anywhere and everywhere
  • IP68 rating provides excellent protection against dust, dirt, sand and water
  • 12MP rear camera comes with dual-pixel Sony sensor for fast and accurate focusing
  • Rear-facing camera uses bright f/1.8 aperture and a large 1.5µm pixel size for brilliant visuals even in low light environments
  • Features Corning® Gorilla® Glass 6 screen cover that is anti-scratch and drop resistant
  • Drop tested repeatedly onto concrete from a height of 1.5m ensuring great robustness
  • 8MP front-facing camera designed for high-quality images every time
  • MIL-SPEC 810G certification provides the ability to withstand extreme temperature changes for up to 24 hours and resistance to vibration and humidity
  • Up to 29 hours talk time to maximise productivity and reduce time spent charging
Caterpillar

Caterpillar S52 tough phone

Battery

Type
Non removable Lithium Ion
Capacity
3100 mAh (supports fast charging)
Talk Time
Up to 29 hours 3G talk time
Stand-by Time
Up to 28 days

Display

Display
Super Bright 5.65” Display – HD+ (1440 x 720) 18:9. IPS, wet finger/glove-on working technology**
Display Cover
Corning® Gorilla® Glass 6

Camera

Rear-facing
Sony 12MP sensor, f/1.8, 1.4μm, dual pixel PDAF, EIS
Front-facing
8MP sensor

Connectivity

Audio Jack
3.5mm (waterproof)
Bluetooth
5
NFC
Yes (Android Pay™)
Wi-Fi
802.11 a/b/g/n/ac (2.4 & 5GHz)
USB
USB Type C (waterproof), USB-OTG
SIM type
Nano SIM, single and dual SIM variants
GPS
GPS, Glonass, BeiDou (variant dependant), Galileo

Data Speed✣

Maximum downlink data rate
300Mbps
Maximum uplink data rate
100Mbps

Memory

ROM Flash
64GB ROM
RAM
4GB RAM
Expandable Storage
Expandable via microSD™ card (separate microSD ™ and SIM slots)

multimedia

Audio
FM Radio, Music Player
Video Recording
1080p at 30 fps
Video Playback
1080p at 30 fps

Network

4G LTE Bands
1, 2, 3, 4, 5, 7, 8, 20, 28, 38
3G Bands
1,2,4,5,8
2G Bands
2,3,5,8

Processor

Type
Mediatek Helio P35 Octacore 2.3GHz
Platform (OS)
Google Android™ 9 (with upgrade to 10)

Beyond Rugged

Ingress protection
IP68: Sand, dust and dirt resistant
Waterproof
Down to 1.5 m for 35 minutes
Drop tested
Up to 1,5 m (5ft) onto concrete
MIL SPEC 810G
Thermal shock: handles low to high temperature differences between -25°C (-13°F) – 55°C (131°F) for up to 24hrs*, Resistant to vibration: Category 4, Resistant to humidity and salt mist

Size

Dimensions
158.1 x 76.6 x 9.69mm
Weight
210g

Sensors

Fingerprint Sensor
E-Compass
Proximity sensor
Ambient light sensor
Accelerometer
Gyroscope

Apps

Office Suite, File Commander, App Toolbox

Design features

Physical power and volume (up/down) keys
High-grade aluminium frame
Hard-wearing, non-slip rubberized TPU back
LED notification (3 colours)

ANDROID ENTERPRISE

Android Enterprise Support
Yes, AE Test Suite passed
Zero-touch
Supported
EMMs / MDMs tested*2
Airwatch (VMware)
MaaS360 (IBM)
SOTI
42Gears


*2Device testing against limited test cases only, carried out by Bullitt Group or by independent testers. No EMM / MDM testing is exhaustive, and specific IT setups can cause compatibility issues. Field testing recommended.



*Various temperatures and time-cycles tested.
**We cannot guarantee that all gloves will work with this feature.
✣ Network bands in regions may be different, depending on the mobile operator and your location. Upload and download speeds also depend on the mobile operator.
Available storage is less due to phone software. Battery times (talk time, standby time, and more) are based on 3G and are subject to network and phone usage. Note: Specifications are subject to change without prior notice.
