A next-generation wireless presentation system that boosts content sharing

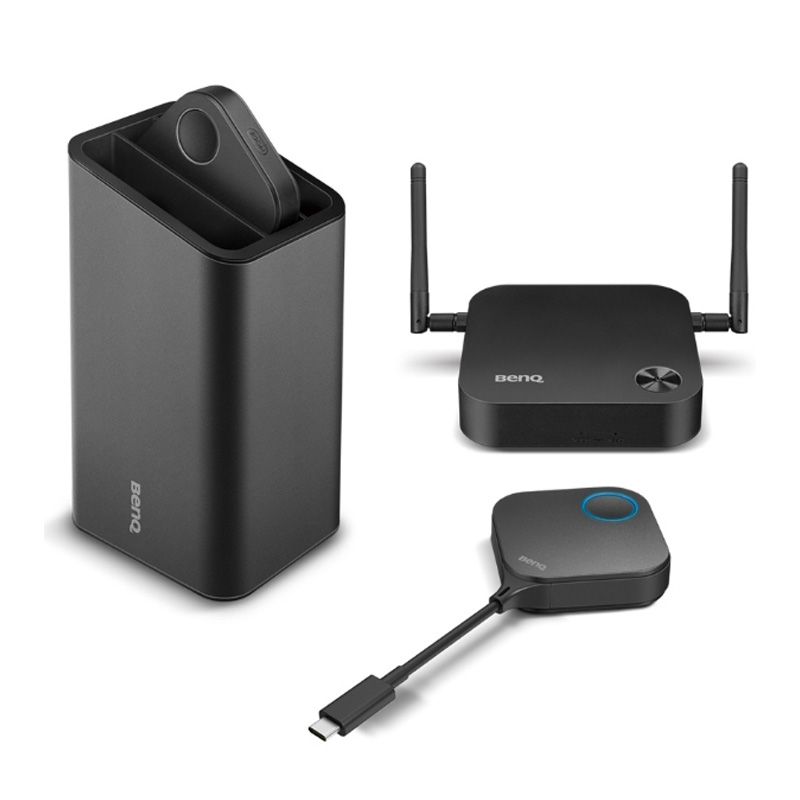

BenQ's InstaShow WDC10C wireless presentation solution simplifies the process of sharing information and collaboration between parties. Consisting of a receiver, two broadcast buttons and a storage stand, this next-generation solution lets you share HD content in seconds. A scalable system, this model supports the simultaneous connection of up to 16 sharing buttons, so that each participant can quickly present their ideas, while the system's low power consumption allows you to do your part for the environment while conducting efficient business conferences.
Plug&Play technology: quick start
Ready to use, this solution requires no software or complex installation to operate. Simply pair the receiver with the buttons using a wireless connection, and then connect your presentation modules to your PC using the available USB-C connector and they are instantly operational. With a simple push of the button, you can then broadcast your screen, even if a colleague is already sharing content. Allowing this simultaneous presentation allows you to make your point in real-time while adding a dynamic touch to your collaborations.
Connectivity
While the button's built-in "mode" button makes sharing content more dynamic by switching from static to interactive presentations with smooth, full HD video and audio resolution, the LED indicators on the receiver and sharing buttons make it easy to see the connection status of your system at a glance with a simple colour code. Upgrade your wireless presentation system with additional buttons. You can choose between USB + HDMI buttons (BENQWDC10BT) and USB-C modules (BENQWDC10BTC), the latter being universal brackets that work perfectly with each other and allow you to equip all types of computers.
Features:
InstaShow button:
WDC10C Wireless Presentation Button
Smooth video and audio technology
Frame rate: up to 60 frames per second
Maximum output resolution: 1920 x 1080px (1080p)
Support for 800 x 600px to 1920 x 1080px resolutions
Maximum input resolution: 1920 x 1080px
16-bit 48kHz stereo and radio audio quality
Reset button and mode button for switching to video streaming
LED indicator available: red (start), green (Wi-Fi connected) and blue (presentation in progress)
Up to 16 buttons can be connected simultaneously
Maximum range of 8 meters between button and receiver for optimal use
Connectivity: USB-C; Wi-Fi
Compatible platforms: Windows, Mac, Chrome
Power supply: DC 5V±10%, 0.9A
Power consumption: 4.5W for normal use
Button dimensions: 84.5 x 188.3 x 19.9mm
Button weight: 87.3g
Operating temperature: 0 to 40°C
InstaShow receiver:
Signal transmission device
Presence of a power button and an association button
LED indicators available: red (start), green (ready for connection) and blue (presentation in progress)
Ports and interfaces: LAN; HMDI output and micro USB
Power supply: DC 5V±10%, 1.5A
Power consumption: 5W (normal use); 2W (network standby) and 0.02W (HDMI standby)
Authentication and security protocol (encryption) : WPA2 / AES 128bit
Receiver dimensions (excluding antennas): 110 x 110 x 27mm
Receiver weight: 150g
InstaShow Support:
Additional element to store your presentation buttons
