Yealink MeetingDisplay 86''
Internal ref: YEALMD86 // Manufacturer part #: MD86
86” 4K ultra-large display with Android 13, wireless casting, and smart device synchronisation
£1,699.99
£2,039.99 Incl. VAT
Bulk orders, request a quote now!
2 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of Show more
Key features
- Massive 86” 4K UHD display
- Integrated Android 13 platform
- AirPlay and Miracast for wireless sharing
- Smart power sync and digital signage
- All-in-one mounting for Yealink hardware
- Dual 12W front speakers
- Managed via YMCS or YDMP platforms
- 18-hour daily runtime capability
In the box
- 1 x Yealink MeetingDisplay 86''
- 1 x 3m AC power cabl
- 1 x 3m CAT5E network cable
- Cable ties
- 1 x Remote Controller (IR)
- 2 x AAA Batteries
- User Documentation
Product range:
Product description

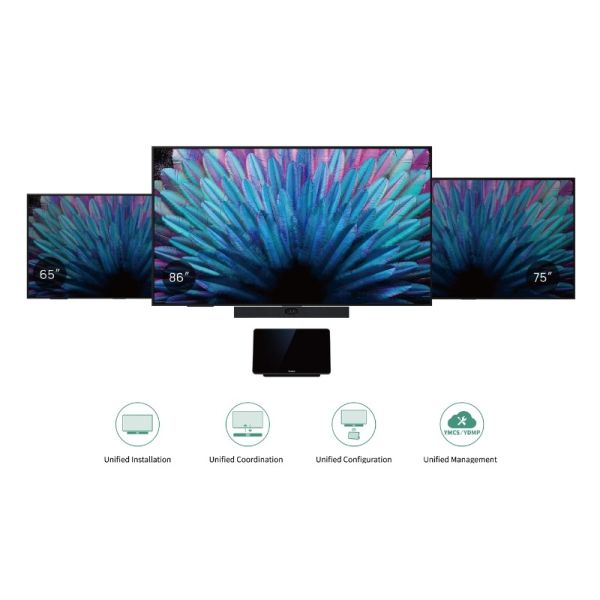

Yealink MeetingDisplay 86''
A premium 86” meeting display delivering 4K UHD visuals, built-in Android 13, and seamless integration with Yealink collaboration systems. Ideal for executive boardrooms and large meeting spaces.
Overview of the display
- 86” ultra-large 4K IPS screen with anti-glare surface
- Runs on Android 13 for fast, intuitive interaction
- Designed for cable-free setup with embedded brackets
- Dual front-facing 12W speakers for clear in-room audio
- Power and network support for Yealink MeetingBar & MCore
- Unified control over all connected hardware via YMCS or YDMP
Video specifications and performance
The MeetingDisplay 86 uses an 86-inch IPS panel with 3840 × 2160 resolution, 500 cd/m² brightness, 178° viewing angles, and a 1200:1 contrast ratio. It includes a 10-bit colour depth (1.07 billion colours), 72% NTSC gamut, and 60Hz refresh rate. Engineered for continuous use up to 18 hours/day, it delivers professional-grade video for modern conference environments.
Compatibility of devices and software
The unit includes 3 HDMI inputs and LAN ports for direct connection and supports wireless sharing via AirPlay and Miracast. It’s fully compatible with Yealink MeetingBar, UVC cameras, and MCore systems, all manageable via YMCS or YDMP platforms.
Collaborative features: how it stands out
Enjoy easy content sharing through HDMI or wireless casting (AirPlay, Miracast). Advanced functions include automatic power sync, wake-up mode, and integrated digital signage. Simplifies configuration and reduces manual effort in collaborative spaces.
Technical specifications
- Panel type: IPS
- Screen size: 86”
- Resolution: 3840 × 2160 (4K UHD)
- Brightness: 500 cd/m²
- Contrast ratio: 1200:1
- Viewing angle: 178° (H/V)
- Refresh rate: 60Hz
- Response time: 8ms
- Colour depth: 10-bit (1.07B colours)
- Colour gamut: 72% NTSC
- Surface: Anti-glare, 25% haze
- Audio: 2 × 12W speakers
- Operating system: Android 13
- Memory: 4GB
- Storage: 32GB
- Power: 100–240V~50/60Hz
- Power consumption (86"): Max 323W / Typical 268W / Off mode <0.5W
- Usage rating: 18 hours/day, 7 days/week
- Operating temperature: 0 to 40°C
- Storage temperature: -20 to 60°C
- Humidity: 10–95%
- Wireless: Wi-Fi 6 (2.4G/5G), Bluetooth 5.1
- Ports:
- HDMI In 2.0 × 3
- USB-A 2.0 × 2, USB-B 2.0 × 1
- 3.5mm audio output
- 2 × RJ45 (10/100/1000M)
- RS232 × 1, IP control (via LAN)
- Reset button × 1
- Remote control: IR included
- Mounting: Compatible with wall or mobile stand installations
- Optional accessories: MD-WallMount (wall bracket), MB-FS-Lift (motorised stand)
Files
Yealink MeetingDisplay 86'' - Datasheet (EN)
Product Specs.
| Manufacturer part # | MD86 |
|---|---|
| Warranty | 2 years |
| Use type | Meeting Room |
| Screen Size | 86" |
| Screen Resolution | 4K |
| Compatible With | Teams |
| Operational hours | 18 by 7 |
| Brightness | 350 - 700 cd/m² |
| Other Features | With Android, Screen |
